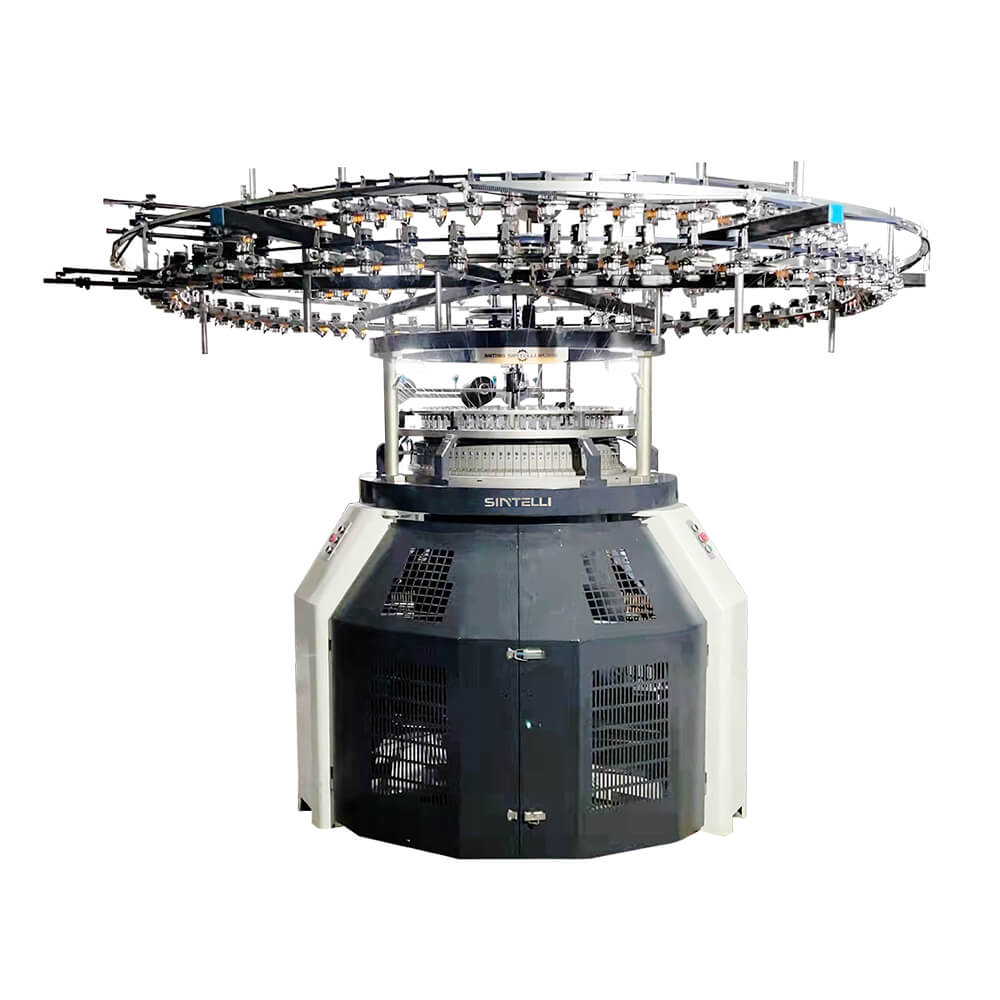

Single Terry Circular Knitting Machine

Single Terry Circular Knitting Machine

Single Terry Circular Knitting Machine


Featuring different types of sinkers, the terry single knitting machine is capable of knitting high-quality terry fabric of different loop height. With the Lycra attachment, it can also knit stretchy towel.

  • Multifunction model. Conversion kits allow single jersey, terry and velour machine changes
  • High-volume production rate
  • Stable fabric performance guaranteed by our famous converter
  • Application Area: Towel, sheet, pillow cover, carpet, home textiles and fabrics for children/baby wear, medical textiles
  • Applicable Yarn Materials: cotton, synthetic fiber, silk, artifical wool, mesh or elastic cloth.

Download Specifications Inquire This Item

Transfer Capably

Flexibly and easily knits different fabrics through replacing some heart parts,high investment utilization

Long lifespan

Special processed cams and quality material insure Higher utilization,less down time and long lifespan.

Main Features


Featuring different types of sinkers, the terry single knitting machine is capable of knitting high-quality terry fabric of different loop height. With the Lycra attachment, it can also knit stretchy towel. Moreover, velvet with protruding loops can be produced as this machine is characterized by reversed cams and normal cams.

Our Single Terry Circular Knitting Machine can be adjusted through the crimp and wheel tension based on the diverse fabric types and thickness required. We guarantee uniform cloth density and prevention of marks.

Each part, such as the motor,inverter, oiler, yarn storage device and yarn creel, is rigorously selected to ensure product quality is at premium. Cams are made of special alloy steel, CNC milled, grinded and heat treated. The needle track is also accurately made and runs smoothly, which ensures minimum part wear.

The unique design of CSA (Central Stitch Adjustment) makes adjustment of fabric density to be easy and accurate.

Flexible for knitting various fabrics and multi-functional models.

Flexible for knitting various fabrics and multi-functional models.

A machine with multi-purpose functions, by configuring specific parts, the machine can easily be converted into a 3-thread-fleece and plain single jersey 4-track circular knitting machine.

Stable Performance

Stable Performance

Groz-beckert Needles and Kern Sinkers are used to ensure fabric quality and long-life machine performance; cams are made of special alloy steel and processed by CNC and CAM treatment.

  • MODEL CYLINDER DIAMETER MACHINE GAUGES NO. OF FEEDERS SPEED
    SJT 26’’-34’’ 18-24G 2 F/Inch 25 RPM

    Benefits:

    Cloth Intricacy Maintained

    We use a wire-race bearing exported from Germany that greatly enhances machine precision of up to 0.03mm tolerance.

    Better Hand-Felt Terry Fabric Experience

    The secret of producing high-quality terry fabric is the durability of the machine parts. All our machine parts are CNC machined and heat treated Cast Iron that will surely pass and exceed the test of time.

    Long lifespan

    Special processed cams and quality material insure higher utilization, less down time and long lifespan.

  • Application Area: Towel, sheet, pillow cover, carpet, home textiles and fabrics for children/baby wear, medical textiles
    terry-fabric

    terry

    Remember those times when you had to tell others how much time and money it actually takes when handknitting, and how much it would have to cost in order to bring it into profit? We do understand you.

    With our Single Terry Knitting Machine, you can easily make your own line clothing, apparel and bring them into the next generation of terry cloth fashion. Plus, this piece of knitting equipment is offered at an affordable price, producing knitted fabric at a very fast rate of 25 RPM.

    Our machine features different types of sinkers and it’s capable of knitting high-quality terry/fleecy fabric with its different loop heights. It can even accommodate knitting stretchy towels.

    All thanks to the innovatively combined programming of human knitting principles and aesthetically engineered machine sequential mechanism, our circular terry knitting machine can smartly manufacture your desired high-quality terry cloth material.

    Multifunction model

    This allows you to easily convert from single jersey to terry and velour machine whenever changes in cloth specifications are needed.

    High-volume production rate

    Knitting is done very quickly at a surprisingly fast central revolution of 25 RPM.

    Stable fabric performance guaranteed by our famous converter

    Premium Class Machine Producing High-Class Fabric

    Product quality inspections are carried out at a priority.

    Application Area: Terry Towel, sheet, pillow cover, carpet, home textiles and fabrics for children/baby wear, medical textiles, french terry, jacquard knit.

    Applicable Yarn Materials: cotton terry cloth, synthetic fiber, silk, artificial wool, mesh or elastic cloth.

  • EQUIPMENT STANDARD OPTION A OPTION B
    Needle Groz Beckert, Germany Samsung, Korea Yantex, Korea
    Sinker (For single knit) Kern Libbers, Germany Samsung, Korea Yantex, Korea
    High Rigidity Special Design Robust Frame SINTELLI / /
    Zirconia Yarn Guide SINTELLI / /
    Yarn Feeder SUN Feeder (B19) SUN Feeder (B23K) Global OR Memminger
    Automatic oil Lubricator Shengsong, Taiwan Taiguan, Taiwan Can be customized
    Tube Creel Triangle Creel Creel with tube /
    4 PCS Teeth Belt MEGADYNE / /
    Micro-computer control panel (3-shift counter and 4 digital RPM counter) SINTELLI Can be customized /
    Air System Taiguan, Taiwan Shengsong, Taiwan Taishan
    Inverter TOSHIBA, Japan Delta, Taiwan Yolico, Japan
    Motor Teco, Taiwan Sintelli Delta, Taiwan
    Take Down System Fabric open take-down system Sintelli Folding & Rolling take-down system /
    Cylinder SINTELLI Japanese High Precision Alloy Steel material / /
    Machine CAM setting Single Jersey: 4 tracks Double Jersey: Dial 2 tracks, cylinder 4 tracks Exchange cam parts for structions /
    Lycra feeder SUN WAL5-4A/B SUN WAL2-4A/B Memminger
