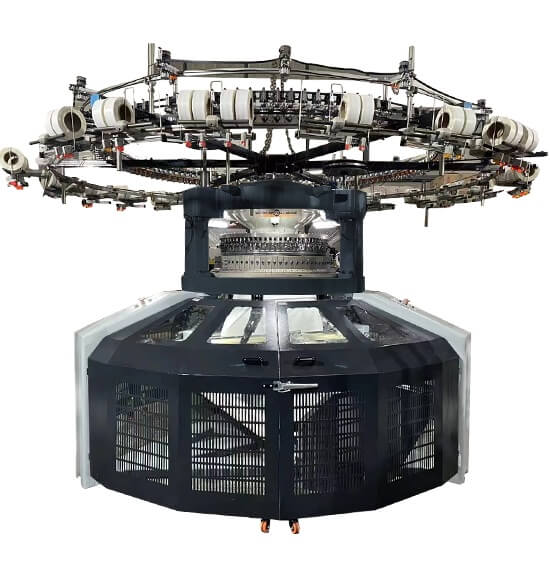

Double Jersey Open Width Circular Knitting Machine

Double Jersey Open Width Circular Knitting Machine

Double Jersey Open Width Circular Knitting Machine


Following the gear design without unfolding the fabric, allows easy rolling up of cloth. Its safety shutdown device functions when the cloth is not cut completely.

  • Top class fabric quality without any center crease over the entire fabric surface
  • Less cutting waste when further processing fabric
  • High production volume
  • Application Area: sportswear and leisurewear

  • Applicable Yarn Materials: cotton, synthetic fiber, silk, artifical wool, mesh or elastic cloth.

Download Specifications Inquire This Item

Cloth Cutting System

Guarantee a uniform and stable knitting tightness of fabric, crease-free and reduce wastage

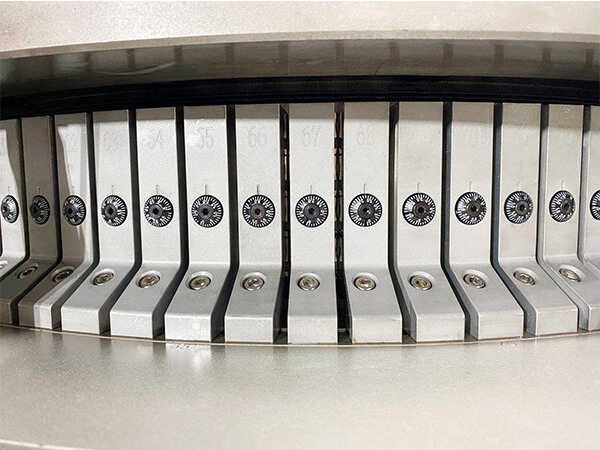

Premium quality cylinder steel

Longer lifespan, higher utilization

Main Features

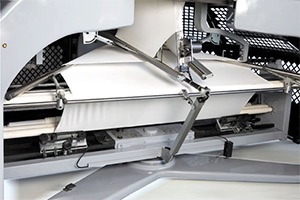

Cloth Cutting System

Cloth Cutting System

Following the gear design without unfolding the fabric, allows easy rolling up of cloth. Its safety shutdown device functions when the cloth is not cut completely. The cloth collecting stick can roll up cloth automatically, to process cloth of diverse sizes, even those which are too small to strain. The cloth-cutting machine is equipped with a roller speed adjustment device, guaranteeing a uniform and stable knitting tightness for the fabric.

High-volume fabric output

High-volume fabric output

Combining the characteristics of double jersey and crease-free for cloths from knitting machines. High fabric output, equipped with a large diameter cylinder and high-speed motor; automatic cutting system to ensure unnecessary fabric loss.

  • Model Cylinder Diameter Machine Gauges No. of Feeders Speed
    DJOW 16’’-44’’ 10-36G 32 - 96 F/Inch 15-25 RPM
  • Application Area: sportswear and leisurewear
    double

    double-fabric

  • Equipment STANDARD OPTION A OPTION B
    Needle Groz Beckert, Germany Samsung, Korea Yantex, Korea
    Sinker (For single knit) Kern Libbers, Germany Samsung, Korea Yantex, Korea
    High Rigidity Special Design Robust Frame SINTELLI / /
    Zirconia Yarn Guide SINTELLI / /
    Yarn Feeder SUN Feeder (B19) SUN Feeder (B23K) Global OR Memminger
    Automatic oil Lubricator Shengsong, Taiwan Taiguan, Taiwan Can be customized
    Tube Creel Triangle Creel Creel with tube /
    4 PCS Teeth Belt MEGADYNE / /
    Micro-computer control panel (3-shift counter and 4 digital RPM counter) SINTELLI Can be customized /
    Air System Taiguan, Taiwan Shengsong, Taiwan Taishan
    Inverter TOSHIBA, Japan Delta, Taiwan Yolico, Japan
    Motor Teco, Taiwan Sintelli Delta, Taiwan
    Take Down System Fabric open take-down system Sintelli Folding & Rolling take-down system /

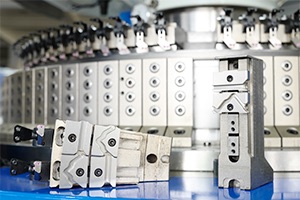

    Cylinder SINTELLI Japanese High Precision Alloy Steel material / /
    Machine CAM setting Single Jersey: 4 tracks Double Jersey: Dial 2 tracks, cylinder 4 tracks Exchange cam parts for structions /
    Lycra feeder SUN WAL5-4A/B SUN WAL2-4A/B Memminger
