Double Jersey Computerized Jacquard Circular Knitting Machine

Double Jersey Computerized Jacquard Circular Knitting Machine

Double Jersey Computerized Jacquard Circular Knitting Machine

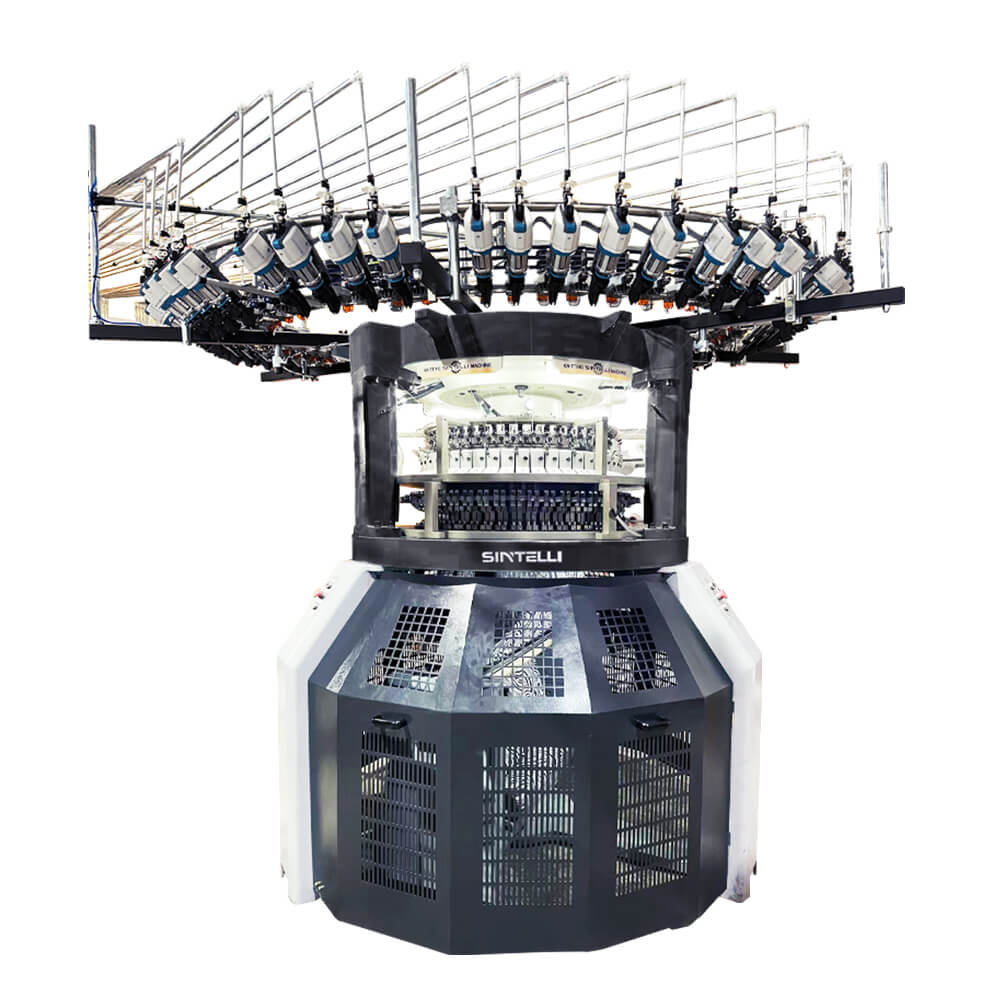

The double jersey electronic jacquard circular knitting machine features a computerized actuator to select needles on the cylinder.

  • Able to knit various designs of jacquard fabric
  • Features a computerized actuator to select needles on cylinder
  • Application Area: Clothing, sheet, pillow towel, fabrics for children and other home textiles.

  • Applicable Yarn Materials: cotton, synthetic fiber, silk, artifical wool, mesh or elastic cloth.

Download Specifications Inquire This Item

Unlimited Knitting Range

Computerized needle selection technology enables unlimited knitting range, change patterns without incurring extra expenses

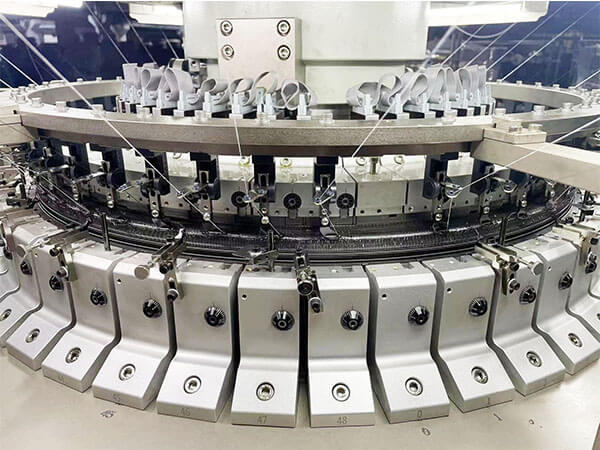

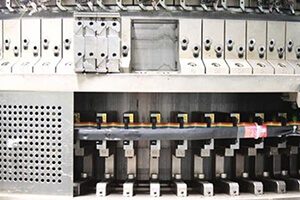

Professional CAM system

Professional CAM system ensure the stability of needles and less breakdown

Main Features


The double jersey electronic jacquard circular knitting machine features a computerized actuator to select needles on the cylinder. Any complicated structure/ design of fabric can be input into the special control system by computer, which can knit various designs of jacquard fabric. Professionally-designed high-speed CAM system makes needles less likely to be broken. The bed plate is made of steel ball-bearing runway structure with oil immersion, guaranteeing stable running of the machine, low noise and high abrasion resistance.

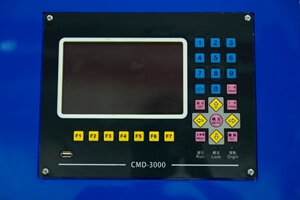

LCD Touch Screen

LCD Touch Screen

The combination of machine operation and computerized needle selection enables the operation interface to be easily understood and operated. Since the host computer is installed within the product and the interfaces are situated at either side of the main control cabinet, the jacquard circular knitting machine looks compact and neat.

Power Off Memory Function

Power Off Memory Function

Under the control of a computer, the machine possesses memory function and convenient USB ports. The operator can directly store pattern information on the computer, thus avoiding repeated input. There is no risk of data loss due to power outages.

  • Model Cylinder Diameter Machine Gauges No. of Feeders Speed
    DJCJ 30’’-38’’ 12-28G 54-22 F/Inch 15-22 RPM
  • Application Area: Clothing, sheet, pillow towel, fabrics for children and other home textiles.

    jacquard-1

    jacquard-2

  • Equipment STANDARD OPTION A OPTION B
    Needle Groz Beckert, Germany Samsung, Korea Yantex, Korea
    Sinker (For single knit) Kern Libbers, Germany Samsung, Korea Yantex, Korea
    High Rigidity Special Design Robust Frame SINTELLI / /
    Zirconia Yarn Guide SINTELLI / /
    Yarn Feeder SUN Feeder (B19) SUN Feeder (B23K) Global OR Memminger
    Automatic oil Lubricator Shengsong, Taiwan Taiguan, Taiwan Can be customized
    Tube Creel Triangle Creel Creel with tube /
    4 PCS Teeth Belt MEGADYNE / /
    Micro-computer control panel (3-shift counter and 4 digital RPM counter) SINTELLI Can be customized /
    Air System Taiguan, Taiwan Shengsong, Taiwan Taishan
    Inverter TOSHIBA, Japan Delta, Taiwan Yolico, Japan
    Motor Teco, Taiwan Sintelli Delta, Taiwan
    Take Down System Fabric open take-down system Sintelli Folding & Rolling take-down system /
    Cylinder SINTELLI Japanese High Precision Alloy Steel material / /
    Machine CAM setting Single Jersey: 4 tracks Double Jersey: Dial 2 tracks, cylinder 4 tracks Exchange cam parts for structions /
    Lycra feeder SUN WAL5-4A/B SUN WAL2-4A/B Memminger
